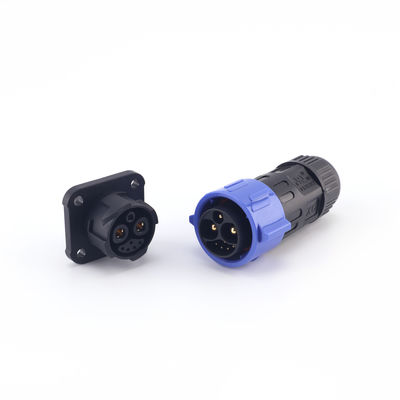

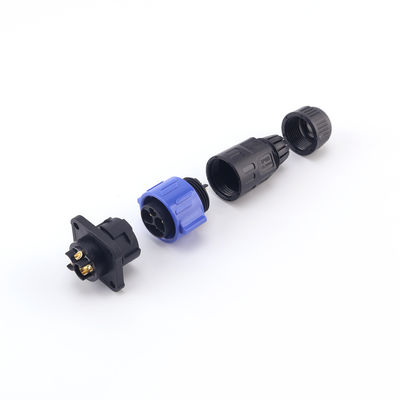

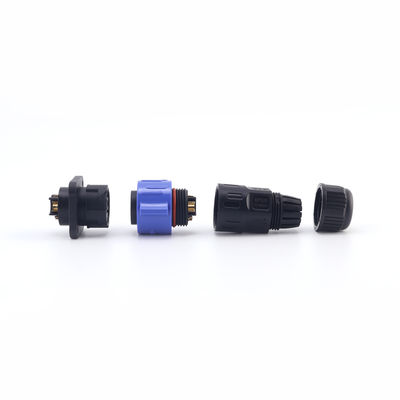

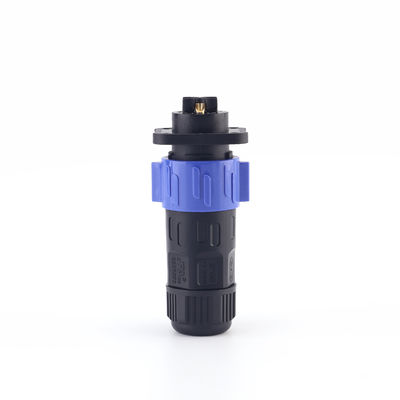

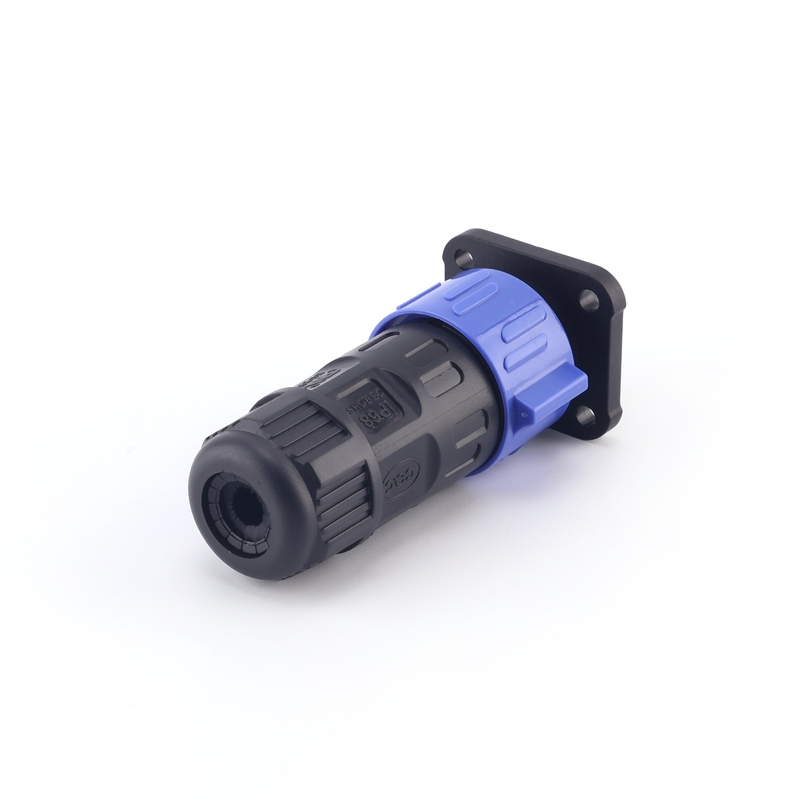

IP67 Panel Mount Plug M25 Self-locking Outdoor LED Light Waterproof Power Connectors
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | Xiangqian |
| प्रमाणन: | UL |
| मॉडल संख्या: | M25 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 100pcs |
|---|
|
विस्तार जानकारी |
|||
| ब्रांड: | ज़ियांगकियान | कनेक्टर का नाम: | M25 IP67 वॉटरप्रूफ कनेक्टर |
|---|---|---|---|
| सामग्री: | PA66, नायलॉन | आईपी ग्रेड: | IP67 |
| केबल ओडी: | 6.0मिमी-14.0मिमी | कनेक्टर कोर: | 3+4 पिन |
| प्रमाण पत्र: | उल, टीयूवी | नमूना: | मुक्त |
| प्रसव के समय: | 3-5 दिन | ||
उत्पाद विवरण
IP67 Panel Mount Plug M25 Self-locking Outdoor LED Light Waterproof Power Connectors
The nylon self-locking M25 outdoor high-voltage waterproof connector is a high-reliability connection solution designed for outdoor power transmission and lighting systems. The housing is made of high-strength engineered nylon (PA66), offering excellent resistance to high temperatures, impact, UV rays, and flame retardancy, ensuring long-term stable operation in harsh environments.
The self-locking snap-on design ensures quick and secure connection, effectively preventing loosening due to vibration or external forces, ensuring a safe and reliable electrical connection. With an IP67 rating, it is dustproof and waterproof, making it suitable for a variety of outdoor applications, such as:
- LED street lighting systems
- Outdoor power and signal equipment
- Security surveillance camera systems
- Industrial machinery and transportation equipment
- Agricultural irrigation and new energy projects
Parameters:
| Cable OD | Ø6.0-14.0MM |
| Hardware Material | Copper gold plating |
| Contact Resistance | ≤ 10 mΩ |
| Connection Mode | Push Locking |
| Operating Rated | -40-+105 |
| Flame Retardant Grade | UL94 V-0 |
Performance Test Report (Factory Test)
| Parameter | Common typical values or ranges | Notes |
| Voltage Rating | 250 V / 400 V / 450 V | Some models support high voltage levels (such as solar or power systems) |
| Current Rating | 10 A ~ 30 A (depending on the number of poles, wire diameter, and contact area) |
For example, an M25 push-lock 2-pole connector is rated at 30 A. |
| Contact Resistance | ≤5 mΩ | Some outdoor connector designs require ≤ 5 mΩ to reduce heat and voltage drop |
| Dielectric Withstanding Voltage | Several thousand volts (e.g. 1.5 kV / 60 s, etc.) | Responding to surges or transient overvoltages |
| Insulation Resistance | ≥10 MΩ / 500 VDC | Prevent leakage and insulation breakdown |
| Operating Temperature | –40°C to +105°C (or higher) | For outdoor environments with temperature changes |
| Ingress Protection | IP68 | Indicates that it can be immersed in water for a long time under specified conditions and prevent dust from entering |
| Media durability / humidity / salt spray test | Often pass salt spray test / high humidity aging test | For long-term outdoor reliability |
Product Features and Benefits:
- Self-locking design: Fast plugging and unplugging, secure and stable, with strong shock resistance.
- High protection rating: IP67 waterproof and dustproof, suitable for harsh outdoor environments.
- High-quality material: PA66 nylon housing is lightweight, durable, flame-retardant and aging-resistant.
- Multi-core option: Customizable from 2 to 6 cores to meet power or signal transmission needs.
- Easy installation: Supports male/female docking, panel mounting, and cable customization.
After-Sales Service
1. Quality Assurance
All products undergo continuity, insulation, waterproofing, and appearance inspections before shipment.
We offer a 12-month quality guarantee, with free repair or replacement for non-intentional damage.
2. Technical Support
We provide professional selection guidance, installation instructions, and application consulting.
We can provide customized services based on customer samples or technical requirements.
3. Return and Exchange Policy
If you discover any quality issues after receiving the product, please contact us within 7 days.
For returns not related to quality, the product must be in good condition and will not affect resale.
4. Sample and Customization Services
Sample trials are available, with shipping costs borne by the customer.
Customized cables, cable counts, and custom logos are available.
5. Delivery and Logistics
Standard order delivery time: 5-10 business days.
We can customize the logistics method to ensure safe and timely delivery.
